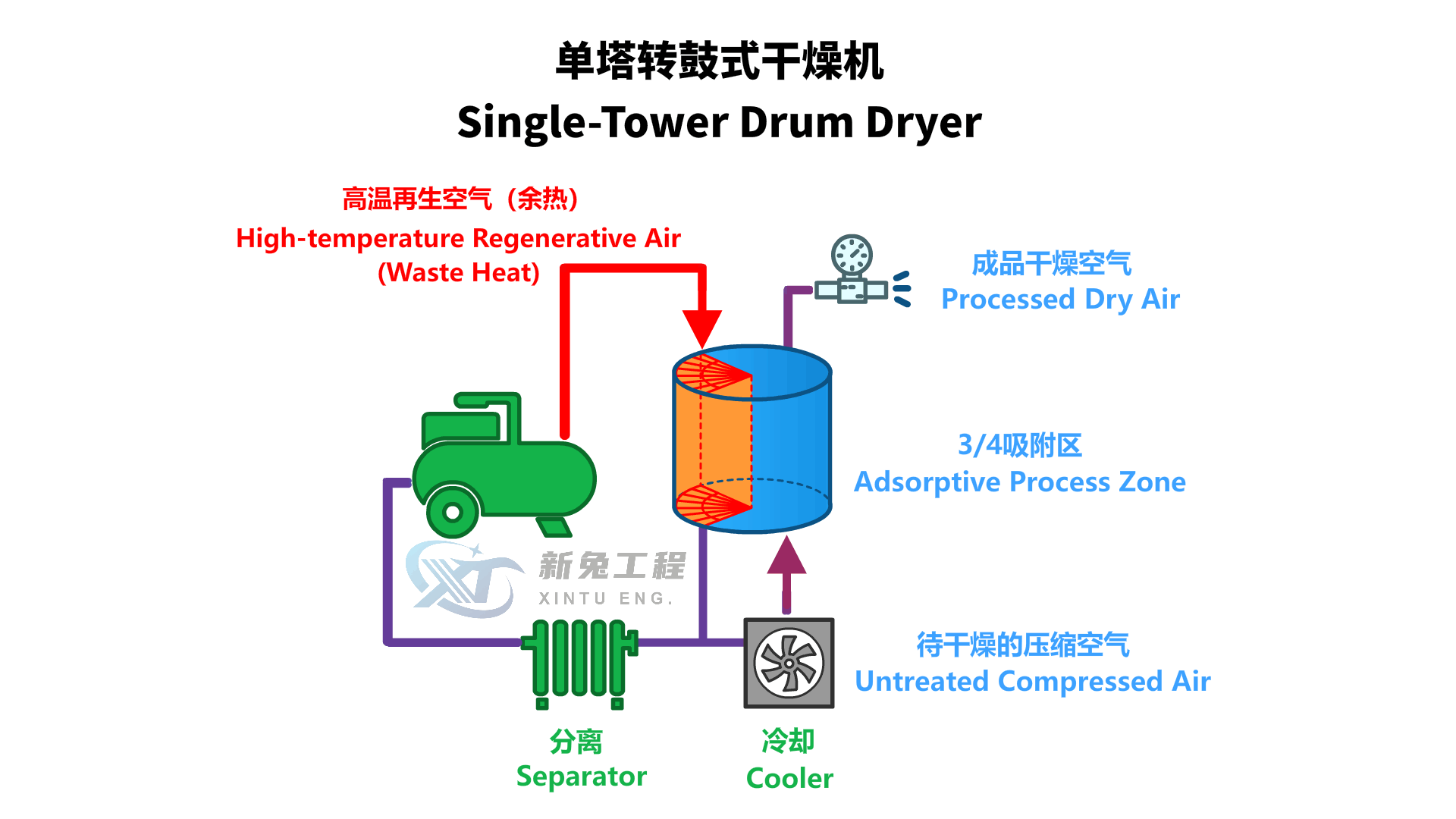

單塔轉鼓式干燥機采用TSA技術，利用壓縮氣體熱量，對吸附后的吸附區域進行加熱再生，經過再生冷卻器冷卻后排出壓縮空氣中的水份；經過吸附轉鼓后，可得到不高于常壓露點-20℃的干燥成品氣。該流程為連續運轉，無切換吸附塔的過程。

The single-drum rotary dryer employs TSA (Temperature Swing Adsorption) technology, utilizing heat from compressed gas to regenerate the adsorption zones after adsorption. The moisture in the compressed air is removed via a regeneration cooler after cooling. After passing through the adsorption drum, the system delivers dry product gas with a dew point no higher than -20°C at atmospheric pressure. This process operates continuously without requiring switching between adsorption towers.

　　特點：Features

　　蜂窩結構的高性能轉輪

　　Honeycomb Rotor Concentration Adsorption

　　 利用無油壓縮機的壓縮余熱進行再生

　　Compressed heat recovery and reuse in oil-free compressor regeneration

　　 無壓縮空氣損失的零氣耗工作流程

　　Zero Gas Consumption Workflow in Adsorption Drying Systems

　　投影面積比傳統雙塔干燥器減小40%

　　40% smaller projected area than twin-tower dryer

　　 運行工況   Working Conditions

　　常溫進氣溫度    NLET TEMPERATURE:≤40℃

　　高溫進氣溫度    HIGH INLET TEMPERATURE:≥110℃

　　電源 Power:    AC380V/3P/50Hz

　　環境溫度      Ambient temperature:1-40℃

　　冷卻水溫度     Cooling water temperature :≤32℃

　　基準應用設計范圍：    Baseline design scope of the Application

　　工作壓力     Working Pressure: 0.3∽1.4Mpa

　　處理流量Discharge Capacity: 12m3/min∽300m3/min @ 0.7Mpa
